Sand Casting


Sand casting is used to produce a wide variety of metal components with complex geometries. These parts can vary greatly in size and weight, ranging from a couple ounces to several tons. Some smaller sand cast parts include components as gears, pulleys, crankshafts, connecting rods, and propellers. Larger applications include housings for large equipment and heavy machine bases. Sand casting is also common in producing automobile components, such as engine blocks, engine manifolds, cylinder heads, and transmission cases.

The four most common materials that are used in sand casting

ALUMINUM ALLOYS
BRASS ALLOYS
CAST IRON
CAST STEEL

We support 3 kinds of sand casting techniques:

Green Sand Casting

The green sand is basically a wet mixture of sand and clay, no chemical is added. The sand mold is squeezed together and holds its shape. The choice of sand has a lot to do with the temperature at which the metal is poured. At the temperatures that copper and iron are poured, the clay gets inactivated by the heat, which is a non-expanding clay. So instead, those that pour iron typically work with silica sand that is inexpensive compared to the other sands.

Resin-bond Sand Casting

Resin binders are natural or synthetic high melting point gums. There are also cold-set resins, which use a catalyst instead of a heat to cure the binder. Resin binders are quite popular because different properties can be achieved by mixing with various additives. Other advantages include good collapsibility, low gassing, and they leave a good surface finish on the casting.

Shell Mold Casting

Shell mold casting process offers better surface finish, better dimensional tolerances, and higher throughput due to reduced cycle times. The materials that can be used with this process are cast irons, and aluminum and copper alloys. The shell molding process produces cost savings solutions for difficult shapes, pressure vessels, weight sensitive parts, and castings requiring superior surface finishes.

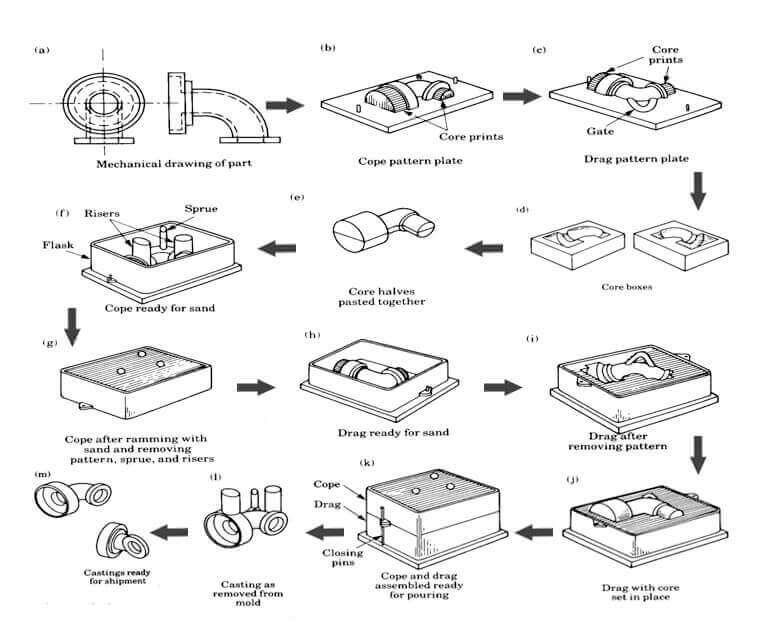

The Process of Sand Casting

Advantages of sand Casting (Sand Molded Casting):

CAN PRODUCE VERY LARGE PARTS
CAN FORM COMPLEX SHAPES
MANY MATERIAL OPTIONS
LOW TOOLING AND EQUIPMENT COST

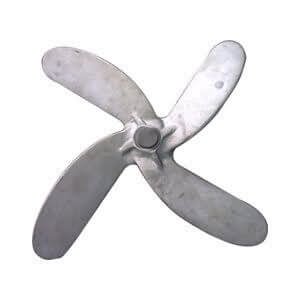

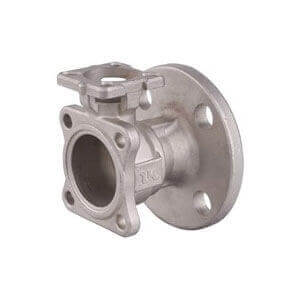

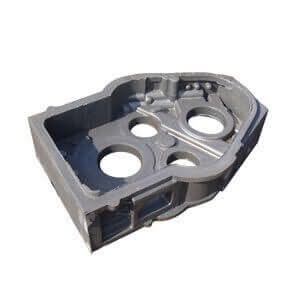

Some samples of our Sand casting production:
